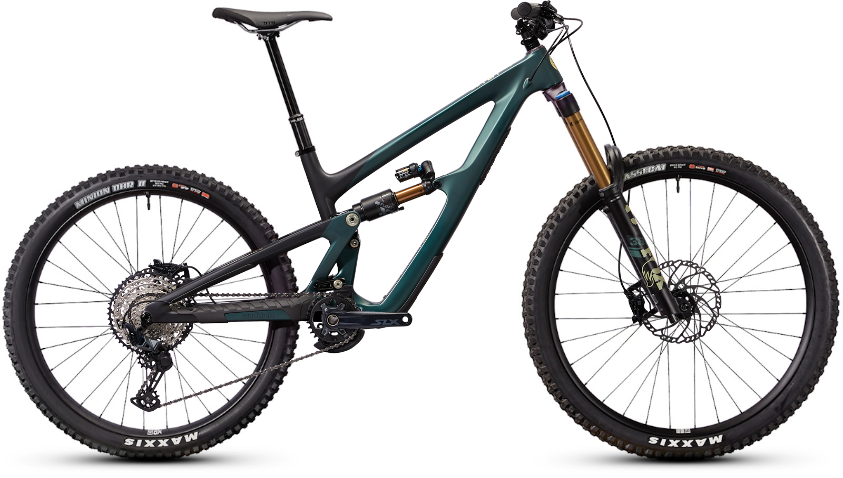

Ibis HD6 SLX

Ibis HD6 SLX
  • Color: Enchanted Forest Green
  • Color: Lavender Haze
  • Color: Traffic Cone Orange
$9,699.00
Color:
Size: Select size
Wheel Size: 29-inch front / 27.5-inch rear
Please select options Unavailable

Details

Introducing the HD6, the evolution of one of the most successful enduro bikes in history. Designed with input from our Enduro World Cup team and building upon our award-winning Ripmo and HD lines, the HD6 features increased travel, a completely redesigned suspension layout, and mixed wheels.

GEOMETRY
The 29" front wheel, bol­stered by 180mm of trav­el, assures sta­bil­i­ty, whereas the 27.5" rear wheel allows for addi­tion­al maneu­ver­abil­i­ty. The 165mm of trav­el skill­ful­ly man­ages any fall­out. With a 64-degree head tube angle (one-degree slack­er than the cur­rent Rip­mo), a BB height sim­i­lar to Mojo HD5, and chain­stay length iden­ti­cal to the cur­rent Rip­mo (despite the 27.5" rear wheel), the bike main­tains an equi­lib­ri­um between agili­ty and stability.

FIVE SIZES
In order to place every size rid­er in the same position over the rear wheel, the HD's seat tube angles get steep­er as frame size increases. With four sizes, this would have result­ed in larger jumps in reach, so we added a fifth size. The small­er incre­ments across five sizes means that you can find just the right size. We encourage rid­ers to choose their bike size based on their desired reach and top tube measurements.

COIL COMPATIBLE
Our upper link sus­pen­sion lay­out is pro­gres­sive enough to be sen­si­tive off the top, yet sup­port­ive enough for the biggest hits. It is also com­pat­i­ble with all coil shocks, for those longer race stages that can tax air shock performance.

DW-LINK
The sus­pen­sion lay­out may be new, but it's still DW-Link. The inher­ent effi­cien­cy means you don't need an over­damped shock to climb well. Less shock damp­ing allows the wheels to stay plant­ed on the ground, pro­vid­ing more trac­tion and that hov­er-bike feel that our frames are known for. The HD6 climbs with a finesse that defies its enduro race pedigree.

TRACTION TUNE
Our cus­tom tuned front and rear sus­pen­sion fea­ture extra light high speed com­pres­sion and rebound damp­ing to deliv­er unpar­al­leled trac­tion. This allows the wheels to flut­ter through rough ter­rain like a tro­phy truck storm­ing through a set of whoops.

BUSHINGS
Tired of buy­ing bear­ings each sea­son? So were we. That's why we've strate­gi­cal­ly employed bush­ings where they're most effec­tive and bear­ings else­where. The IGUS bush­ings in our low­er link are not only lighter and stiffer, they're vir­tu­al­ly main­te­nance-free. We believe so strongly in them, we back them with free life­time replacement.

LIGHTWEIGHT PREMIUM CARBON
All our bikes are built from the high­est grade mate­ri­als and opti­mized for the best strength, weight, stiff­ness, and ride performance, no matter how much you spend. The HD6 frame is sub 6 lbs without shock and our com­plete Enduro ready builds weigh as lit­tle as 32 lbs.

INTERNAL CABLE ROUTING
Bikes that look pret­ty on the out­side should look pret­ty on the inside. We use car­bon fiber tubes mold­ed with­in each frame. Push the cable in, watch it pop out a beau­ti­ful moment indeed.

PROTECT YOUR INVESTMENT
A thick rub­ber down­tube pro­tec­tor deflects debris, while our chain­stay pro­tec­tor fea­tures thick raised sec­tions to help damp­en chain slap noise. And our sim­­ple-yet-ele­­gant link­age pro­tec­tors stop mud and rocks thrown by the tire, keep­ing your beau­ti­ful bike beautiful.

LIFETIME WARRANTY
If it's our fault, we'll fix it. Sim­ple as that.

Geometry

Sizes:
FRAME SIZE12345
Seat Tube Length (mm) A 400 400 406 450 470
Top Tube Length (mm) B 585 610 630 655 685
Head Tube Length (4mm stack of lower cup not included) C 81 86 91 100 115
Chainstay Length (mm) D 435 435 435 435 435
Seat Tube Angle E 76° 76° 76.5° 77° 77.5°
Head Tube Angle G 64° 64° 64° 64° 64°
Wheelbase (mm) H 1202 1228 1256 1288 1328
BB Height (with 2.5WT Maxxis Assegai tires) 345 345 345 345 345
BB Drop (mm) K 30 30 30 30 30
Stack (mm) I 621 625 630 638 651
Reach (mm) J 430 454 480 508 541
Saddle height for seat tube angle F 650 700 745 790 830
Standover (mm) L 725 735 752 765 769
Trail (mm) 136 136 136 136 136
Fork Offset (mm) 44 44 44 44 44
Sizes:
Sizing Guide (Rider Height)
1 158–168CM
2 165–175CM
3 173–183CM
4 180–191CM
5 188–201CM

Specs

Fork Fox Float 38 Factory Series, 180mm, 29”, 110x15
Rear Shock Fox Float X2 Factory Series with EVOL, 230mm x 65mm
Wheels Blackbird Send Alloy (Send I front, Send II rear) / 29" / Ibis Hubs
Tires Maxxis Assegai, 29” x 2.5” / Maxxis DHR, 27.5” x 2.4”
Brakes Shimano SLX M7120, 4 piston
Crankset Shimano SLX M7120, 24mm Spindle, 32T Alloy Ring, 170mm
Bottom Bracket Shimano SLX BB52
Shifters Shimano SLX M7100
Cassette/Freewheel Shimano SLX, 10-51T
Rear Derailleur Shimano SLX M7100 Shadow Plus
Rotors Shimano SM-RT66, F: 203mm/R: 203mm
Headset Cane Creek 40 ZS44/ZS56
Handlebars Ibis Aluminum, 780mm
Chain Shimano SLX M7100
Chain Guide MRP AMg SE
Tape/Grips Lizard Skin Charger Evo
Stem Ibis 31.8mm S/M: 40mm, L/XL: 50mm
Seatpost Bike Yoke Revive Dropper S: 125mm, M: 160mm, L: 185mm, XL/XXL: 213mm. Note there is a 250lb rider weight limit on this post.
Saddle WTB Silverado

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Enchanted Forest Green / 1 / 29-inch front / 27.5-inch rear 840345304322 HDC1GNSSXAL35
Enchanted Forest Green / 2 / 29-inch front / 27.5-inch rear 840345304537 HDC2GNSSXAL35 IBI68948972T
Enchanted Forest Green / 3 / 29-inch front / 27.5-inch rear 840345304742 HDC3GNSSXAL35
Enchanted Forest Green / 4 / 29-inch front / 27.5-inch rear 840345304957 HDC4GNSSXAL35
Enchanted Forest Green / 5 / 29-inch front / 27.5-inch rear 840345305169 HDC5GNSSXAL35
Lavender Haze / 1 / 29-inch front / 27.5-inch rear 840345304346 HDC1LVSSXAL35
Lavender Haze / 2 / 29-inch front / 27.5-inch rear 840345304551 HDC2LVSSXAL35
Lavender Haze / 3 / 29-inch front / 27.5-inch rear 840345304766 HDC3LVSSXAL35
Lavender Haze / 4 / 29-inch front / 27.5-inch rear 840345304971 HDC4LVSSXAL35
Lavender Haze / 5 / 29-inch front / 27.5-inch rear 840345305183 HDC5LVSSXAL35
Traffic Cone Orange / 1 / 29-inch front / 27.5-inch rear 840345304360 HDC1ORSSXAL35
Traffic Cone Orange / 2 / 29-inch front / 27.5-inch rear 840345304575 HDC2ORSSXAL35
Traffic Cone Orange / 3 / 29-inch front / 27.5-inch rear 840345304780 HDC3ORSSXAL35
Traffic Cone Orange / 4 / 29-inch front / 27.5-inch rear 840345304995 HDC4ORSSXAL35
Traffic Cone Orange / 5 / 29-inch front / 27.5-inch rear 840345305206 HDC5ORSSXAL35
