Santa Cruz Nomad C GX AXS Coil MX - 2023

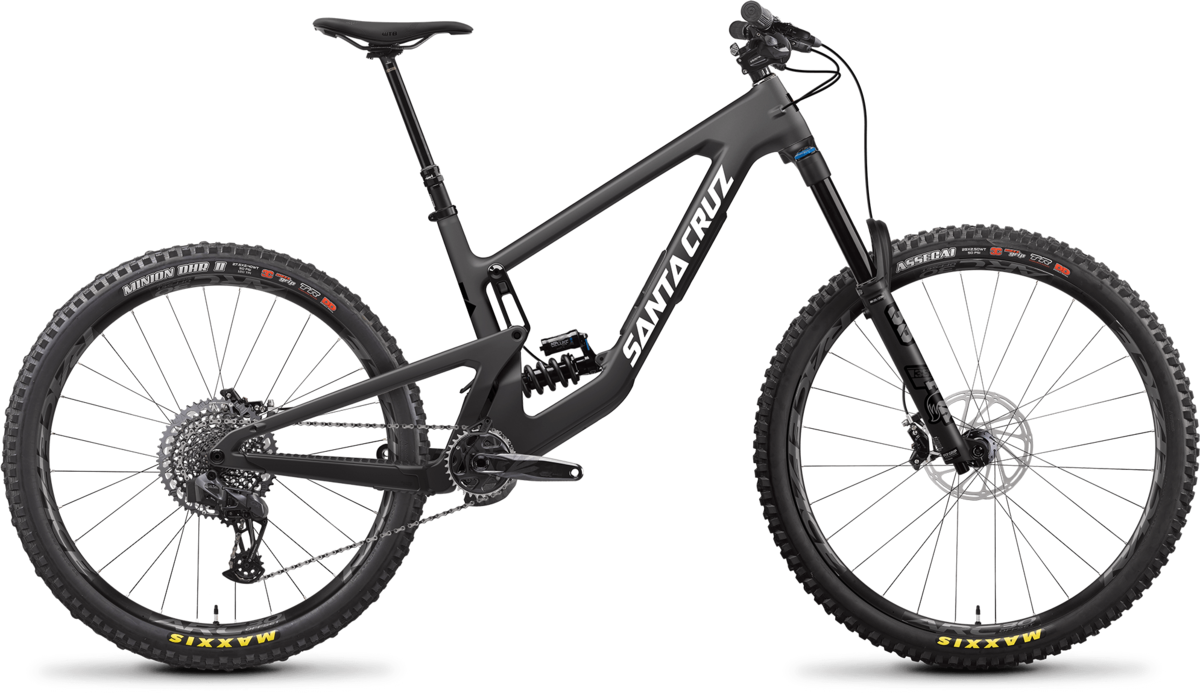

Santa Cruz Nomad C GX AXS Coil MX
  • Color: Gloss Gypsum
  • Color: Matte Carbon
$11,149.00
Please select options
Order now and pick up in-store for free

Details

All the travel and refinements, plus MX wheels.

A bigger wheel up front, geometry updates, Glovebox storage, and suspension improvements add up to an even more fine-tuned package.

SEND IT ANYWHERE
Load up the van, hit the road, climb a mountain, hammer it back down, huck the road gap, throw the bike back in the van, drive to the bike park and do laps on laps. Hell, you could even rock up to the startline on it. The Nomad's forte is being ready and willing to go wherever, whenever. The only thing it needs is a rider willing to press send.

BUILT TO TAKE A BEATING
Ridden hard and put away wet. If you're out riding as much as you'd like to be or you're throwing the bike in the back of the van before relocating to the next riding spot then it's nice to know that all Santa Cruz bikes are built to last. Lifetime warranty and rider support.

Design Details:
- Mixed wheel: 29-inch wheel up front provides traction and stability. The 27.5" rear wheel allows for quick back wheel steering and lifting.
- The Glovebox keeps your essentials within reach. Also comes with a Tool Wallet and Tube Purse for keeping things organized.
- 170mm travel front and rear, a slack head angle and rock solid chassis makes this ideal for finding the outer limits of your own riding.
- Chainstay length and seat tube angle is matched to the frame size so every rider, no matter their height, gets the same balanced geometry.

Tech Info:
- Max tire width: 29 x 2.6 F / 27.5 x 2.6 R
- Boost 148mm spacing
- Post mount brakes w/ 180mm rotors
- ISCG05 chain guide mounts
- Threaded BB
- Santa Cruz UDH - It's better
- IS headset

Geometry Chart:
SizeSmall (Low/Hi)Medium (Low/Hi)Large (Low/Hi)X-Large (Low/Hi)XX-Large (Low/Hi)
Reach (mm)427.3 / 430 452.3 / 455472.4 / 475492.4 / 495517.4 / 520
Stack (mm)618 / 616 627 / 625640 / 638658 / 656672 / 667
Headtube Angle63.5° / 63.8° 63.5° / 63.8°63.5° / 63.8°63.5° / 63.8°63.5° / 63.8°
Headtube Length (mm)90 100115135150
Seat Tube Angle77° / 77.2° 77.2° / 77.4°77.6° / 77.9°77.5° / 77.8°77.5° / 77.7°
Seat Tube Length (mm)380 405430460500
Rear Center (mm)439.8 / 439 440.8 / 440443.8 / 443446.9 / 446450.9 / 450
Front Center (mm)770 799826855886
Bb Height (mm)343 / 346 344 / 346345 / 346346 / 346347 / 346
Bb Drop F/r (mm)30/11 / 27/8 30/11 / 27/830/11 / 27/830/11 / 27/830/11 / 27/8
Wheelbase (mm)1209 1240 / 12391270 / 12691302 / 13011337 / 1336
Toptube Length (mm)577 / 570 594613 / 612638 / 637667 / 666
Standover (mm)705 / 709 713 / 716719 / 723717 / 722720 / 725

Specs

Frame Carbon C MX 170mm Travel VPP
Fork FOX 38 Float Performance Elite, 170mm
Rear Shock RockShox Super Deluxe Select+ Coil, 230x65
Rims Front: RaceFace ARC Offset 30 29"
Rear: RaceFace ARC Offset 30 27.5"
Hubs Front: i9 1/1, 15x110, 28h
Rear: i9 1/1, 12x148, XD, 28h
Tires Front: Maxxis Assegai 29"x2.5", 3C MaxxGRIP, Double Down, TR
Rear: Maxxis Minion DHR II 27.5"x2.4", 3C MaxxGRIP, Double Down, TR
Bottom Bracket SRAM DUB 68/73mm Threaded BB
Crankset SRAM GX Eagle 148 DUB, 32t
Shifters SRAM GX Eagle AXS Controller
Rear Derailleur SRAM GX AXS Eagle, 12spd
Cassette/Freewheel SRAM XG1275 Eagle, 12spd, 10-50t
Chain SRAM GX Eagle, 12spd
Brakes SRAM Code RS
Rotors Avid Centerline 200mm
Handlebars Santa Cruz 35 Carbon Bar, 800mm
Tape/Grips Santa Cruz Bicycles House Grips
Stem Burgtec Enduro MK3, 42mm
Headset Cane Creek 40 IS Integrated Headset
Seatpost RockShox Reverb Stealth, 31.6
Saddle WTB Silverado Medium CroMo
Pedals Sold separately
Accessories & Extras OneUp Bash Guide Chainguide

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Gloss Gypsum / Small 192219300597 58-23280-165-2-769-947201 NMD24145595L
Gloss Gypsum / Medium 192219300672 58-23280-165-3-769-947201 NMD24555417L
Gloss Gypsum / Large 192219300757 58-23280-165-4-769-947201 NMD24185412L
Gloss Gypsum / X-Large 192219300832 58-23280-165-5-769-947201 NMD24816505L
Gloss Gypsum / XX-Large 192219300917 58-23280-165-6-769-947201 NMD25875349L
Matte Carbon / Small 192219300559 58-23280-165-2-768-947201 NMD23831479L
Matte Carbon / Medium 192219300634 58-23280-165-3-768-947201 NMD23394936L
Matte Carbon / Large 192219300719 58-23280-165-4-768-947201 NMD23732149L
Matte Carbon / X-Large 192219300795 58-23280-165-5-768-947201 NMD23965862L
Matte Carbon / XX-Large 192219300870 58-23280-165-6-768-947201 NMD24505836L

Reviews
