Details

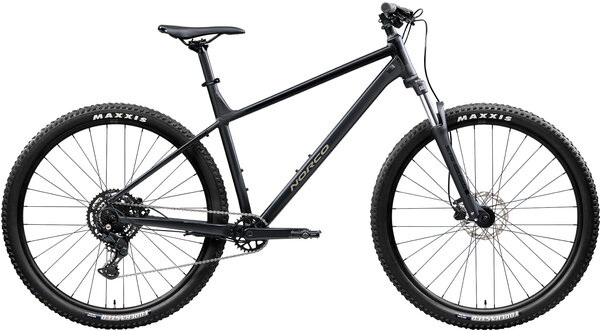

The Storm 100 29" features a progressive off-road design and features that’ll help you discover your favourite way to ride.
The Storm 100 opens up the world of off-road adventure.
It’s built for off-road adventure, but the lightweight aluminum Storm 100 is more than happy to lead a double life on city streets and park paths.
Details:
Progressive design for nimble,?confident trail performance.
The perfect amount of suspension for comfort and control on the trail.
Mechanical systems protected from the elements.
Stop on a dime.
Size-specific wheels optimize the ride.
Versatile frame features to take you anywhere.
No Other Way Limited Lifetime Warranty.
Specs
Frame | Aluminum, Smooth Welding, 10x135mm QR |
---|---|
Fork | Suntour XCT-30 DS Coil, 100mm, 46mm offset, 9x100 QR |
Headset | Zero Stack, 1-1/8" Steer, ZS44/28.6 | ZS44/30 1 1/8" |
Rims/Wheels | DP 27 Rims, 27mm ID, 32H |
Hubs | Front: Formula DC-1420 , 9x100mm QR, 32h, 6-bolt | Rear: Formula DC-1422,10x135mm QR, HG, 32h, 6-bolt |
Spokes | Stainless Steel, 14g |
Tires | Front: Maxxis Forekaster, 29x2.25" (27.5X2.25"size S), Wire | Rear: Maxxis Forekaster, 29x2.25" (27.5X2.25"size S), Wire |
Crankset | Prowheel Alloy, 30T, 170mm (S-M), 175mm (L - XXL) |
Bottom Bracket | Cartridge, ST 73mm, 113mm axle length |
Chain | KMC Cues XGlide 9/10/11 |
Rear Derailleur | Shimano Cues RD-U4000, 9sp, GS |
Shifters | Shimano Cues SL-U4000, 9sp |
Handlebars | 6061 Alloy DB, 750mm (S) / 780mm (M,L,XL,XXL) 30mm rise |
Tape/Grips | DDK lock-On, 139mm length |
Stem | Alloy 50mm Length, 31.8mm Clamp |
Brake Levers | Tektro HD-M275 |
Brakes | Front: Tektro HD-M275, Resin pads | Rear: Tektro. 160mm, 6-bolt |
Saddle | Norco XC, Steel Rail |
Seat Post | Alloy 31.6mm, 300mm (S), 400mm (M/L/XL/XXL) length |
Seat Binder | Norco Alloy QR, 34.9mm ID |
Weight | 15.27 kg (33.6 lbs) - Size Large |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Black Tusk / Small / 27.5 | 058817717710 | 06 730 157 54 | STO1758382K |
Black Tusk / Medium / 29 | 058817717734 | 06 730 159 55 | STO16342260K |
Black Tusk / Large / 29 | 058817717741 | 06 730 159 56 | STO16351978K |
Black Tusk / X-Large / 29 | 058817717765 | 06 730 159 57 | STO17194037K |
Black Tusk / XX-Large / 29 | 058817717789 | 06 730 159 58 | STO18266584K |
Golden Larch / Small / 27.5 | 058817717796 | 06 730 257 54 | STO18398658W |
Golden Larch / Medium / 29 | 058817717802 | 06 730 259 55 | STO17481798W |
Golden Larch / Large / 29 | 058817717819 | 06 730 259 56 | STO17948734W |
Golden Larch / X-Large / 29 | 058817717826 | 06 730 259 57 | STO18200808W |
Golden Larch / XX-Large / 29 | 058817717833 | 06 730 259 58 | STO19279492W |
