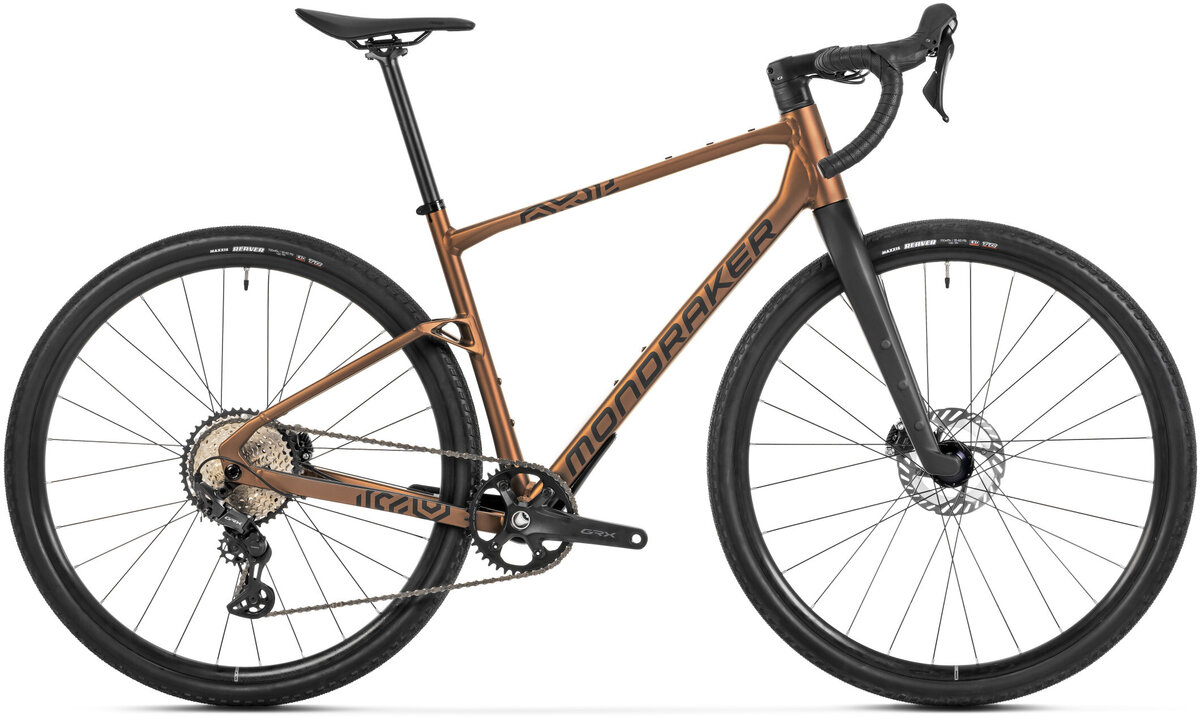

Mondraker Arid S

Mondraker Arid S
$2,999.99
$3,999.00
Color: Bronze
Size: Select size
Please select options Unavailable

Details

Roam solo. Or chase the group ahead on the horizon. Mix it up with your friends or take on your first gravel race. Or simply leave the world behind for the weekend. There’s no wrong way to go, so long as you go!

Riding gravel brings you endless opportunities to experience the world, at the pace and the place that you choose. The new Mondraker Arid is your gateway to the Mondraker gravel scene and the world beyond your doorstep.

Specs

Frame Arid alloy, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, 1X drivetrain design, Flatmount brake compatible.
Fork Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork
Headset Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing.
Rims Mavic Allroad Disc, UST, 25mm internal width, hookless, infinity hubs, 24 spokes front, 28 spokers rear
Hubs Front hub Mavic, 12x100mm, IS 6 bolts | Rear hub Mavic infinity hub, 12x142mm, XD ID360 Ratchet system, IS 6 bolts, MS Freehub
Tires Front tire Maxxis Reaver 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead | Rear tire Maxxis Reaver 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead
Crankset Shimano GRX RX-610, S size: 170mm M size: 170mm ML size: 172,5mm L size: 172,5mm XL size: 175mm, CL 49,7
Chainrings himano 40T, direct mount, steel
Bottom Bracket Token T47 BSA sealed bearings, 85,5mm
Chain Shimano SLX M7100, Quick link
Handlebars OnOff S3 GR 16º bar flare. Width sizes S size: 440mm M size: 440mm L size: 460mm XL size: 460mm
Tape/Grips OnOff HEX Bartape
Stem Onoff Semi-Integrated 6061 T6 Alloy, 31.8mm barbore, rise: -7º, length: S size: 60mm, M size: 70mm, ML size 70mm, L size: 80mm, XL size: 90mm
Brakes Rear brake Shimano GRX RX-610, RX-400 caliper, CL-800 ice tech 160mm centerlock rotor, resin pad | Front brake Shimano GRX RX-610, RX-400 caliper, CL-800 ice tech 160mm centerlock rotor, resin pad
Saddle FIZIK Terra Argo X5 140mm
Seat Post Onoff S9 Carbon 0-R, diameter 27.2mm, length 400mm

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Bronze / Medium 8435392899642 010.26US122 ARI11541298M
Bronze / Medium/Large 8435392899659 010.26US123 ARI12651621L
Bronze / Large 8435392899666 010.26US124 ARI11647467L
